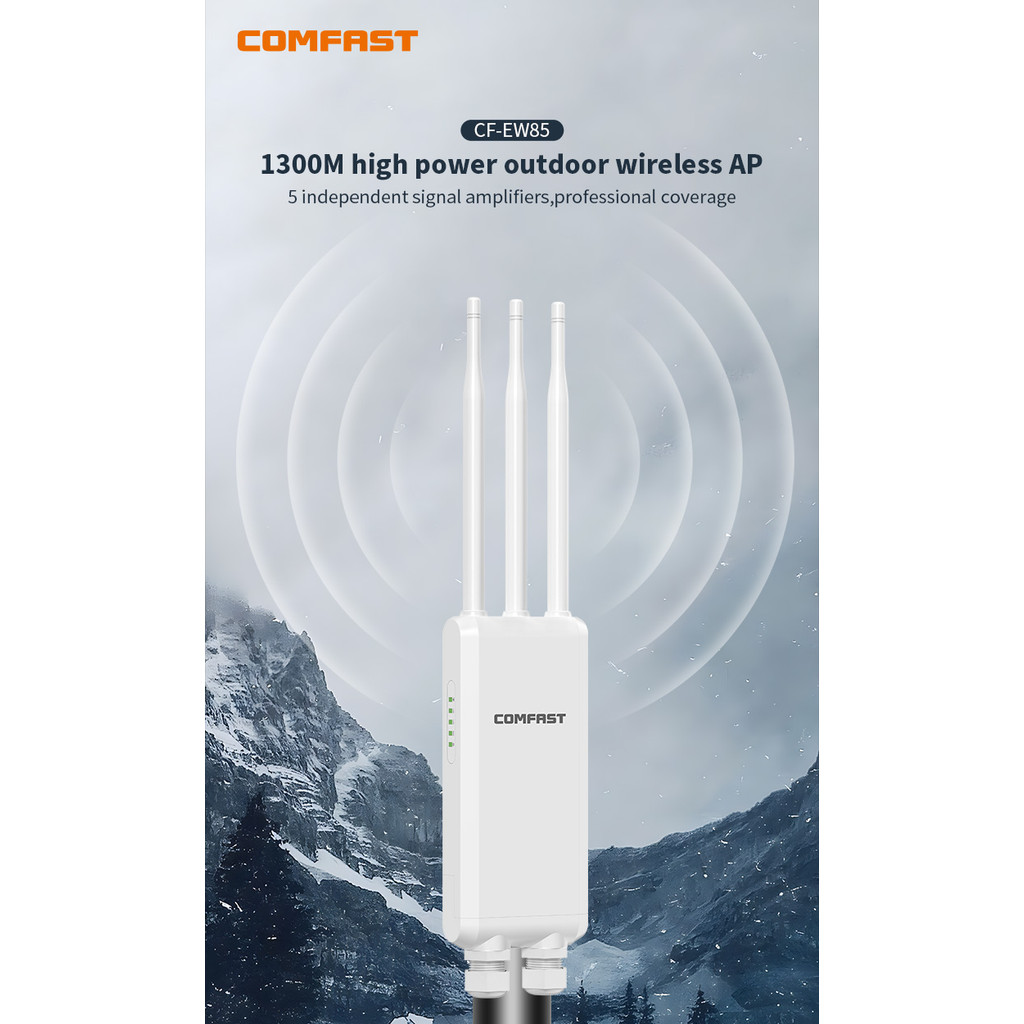

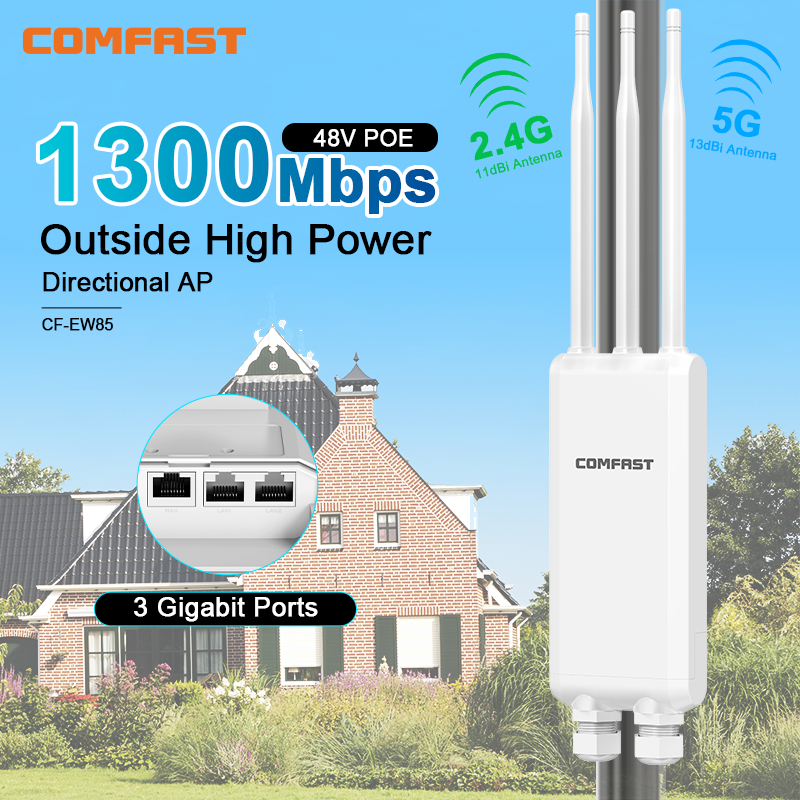

Comfast CF-EW85 Dual-Band Outdoor Access Point | AC1300 High-Power Gigabit WiFi AP with PoE

🔹 Key Specifications – Comfast CF-EW85

• Model: CF-EW85

• WiFi Bands: Dual-Band (2.4 GHz & 5.8 GHz)

• Wireless Speed: 2.4 GHz up to 450 Mbps, 5.8 GHz up to 867 Mbps, combined up to 1300 Mbps

• Chipset: QCA9563 + QCA9886 + QCA8337

• RAM / Flash: 128 MB RAM, 16 MB Flash

• Antennas: 3 × 5 dBi external omni antennas

• Ethernet Ports: 1 × Gigabit WAN, 2 × Gigabit LAN

• Power Supply: DC input + PoE (IEEE 802.3af/at)

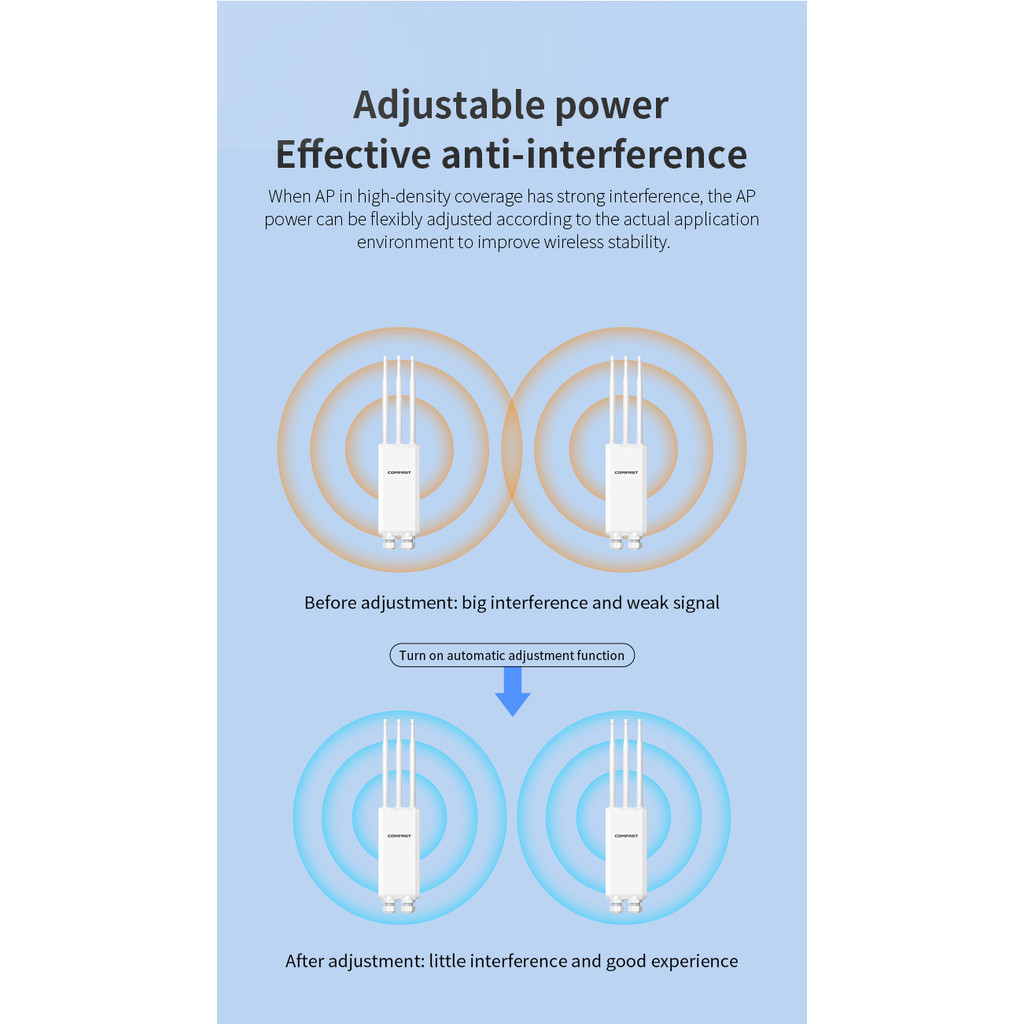

• Transmit Power: up to 29 dBm (≈800 mW)

• Receive Sensitivity: as low as –96 dBm

• Protection Rating: IP66 weatherproof housing

• Installation: Wall- or pole-mount capable

• Power Consumption: < 18 W

🔹 Key Features – Comfast CF-EW85

• High-power dual-band AC wireless performance for fast and stable connectivity.

• Gigabit WAN/LAN ports ensure high-speed wired networking.

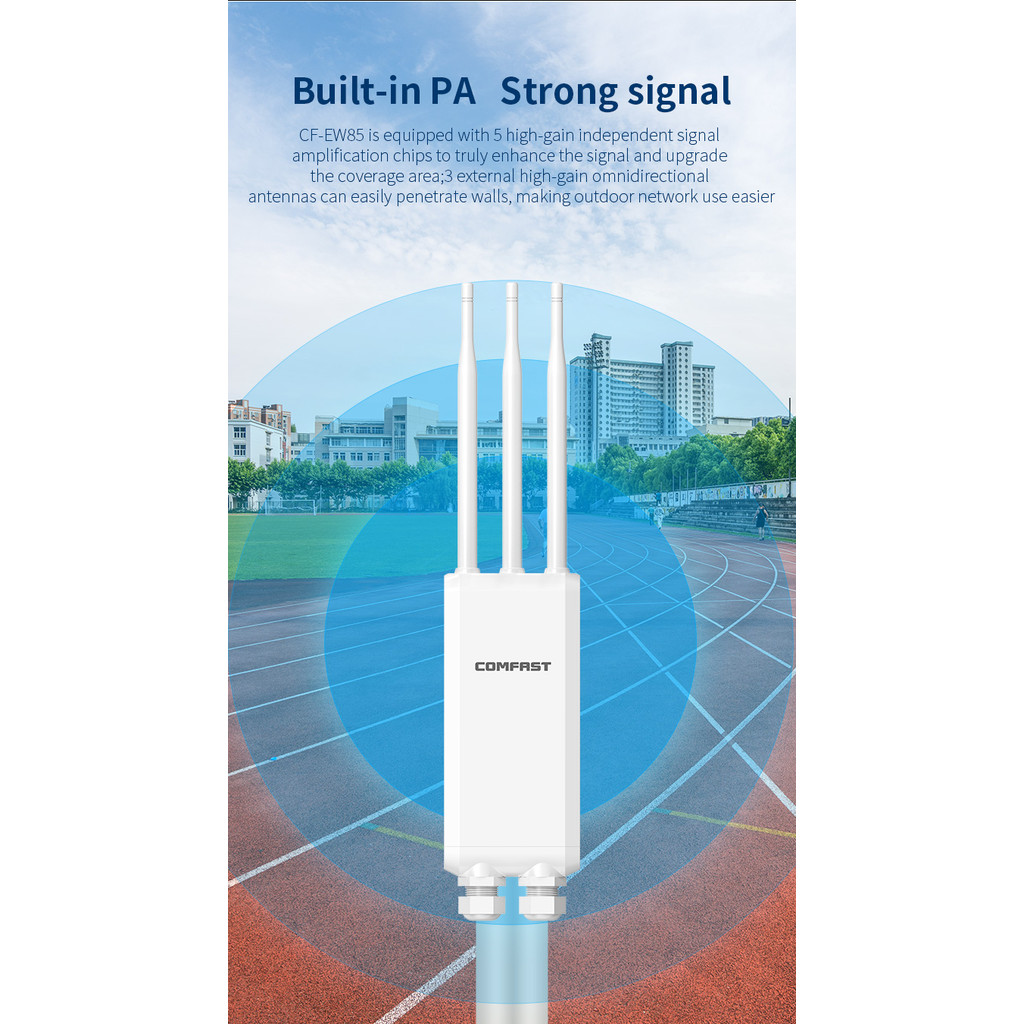

• Wide coverage with external high-gain omni antennas.

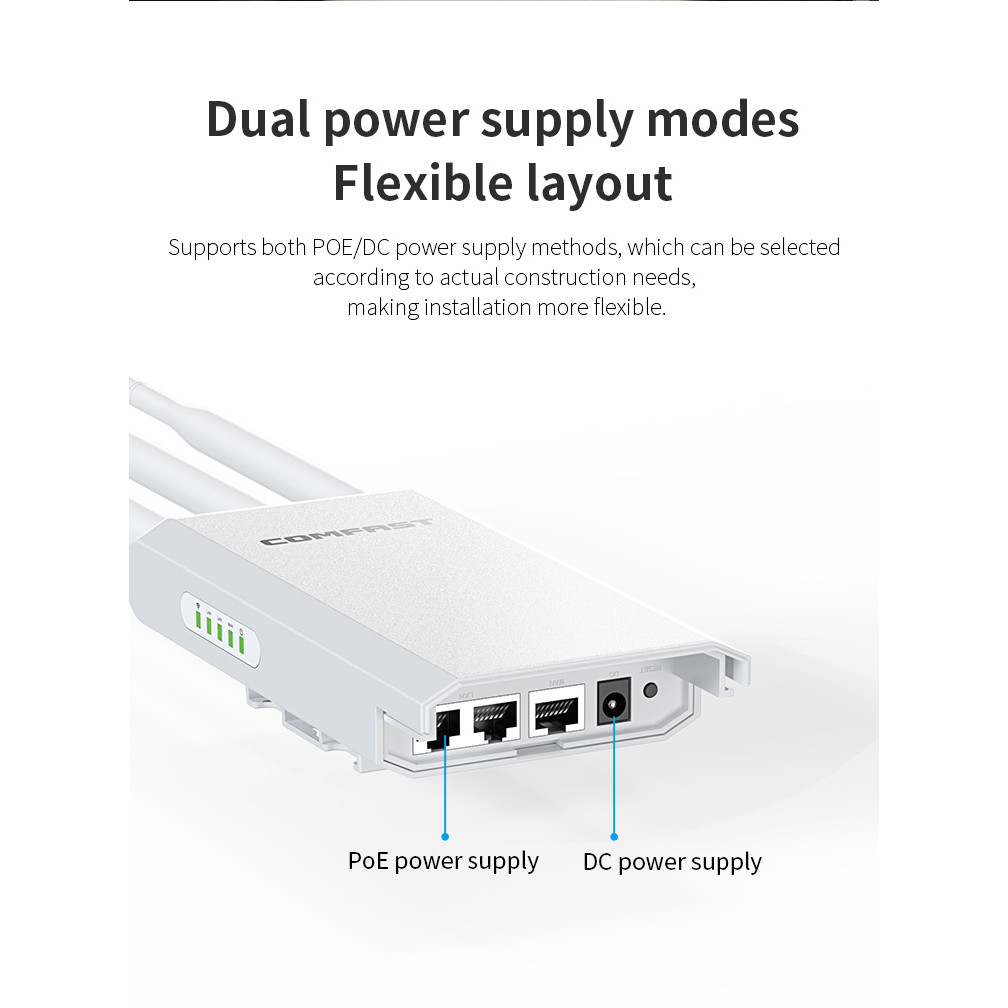

• Flexible power options with both PoE and DC input.

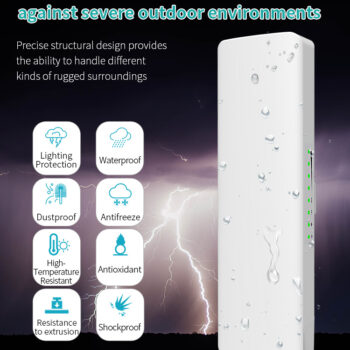

• Rugged IP66-rated housing designed for outdoor environments.

• Supports multiple operation modes (AP, Router, Repeater, etc.).

• Stable performance with high user capacity.
