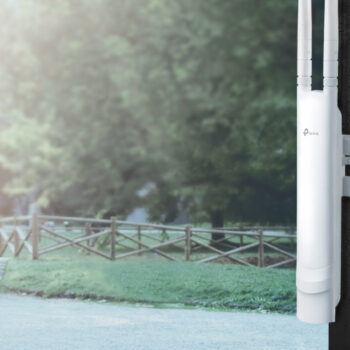

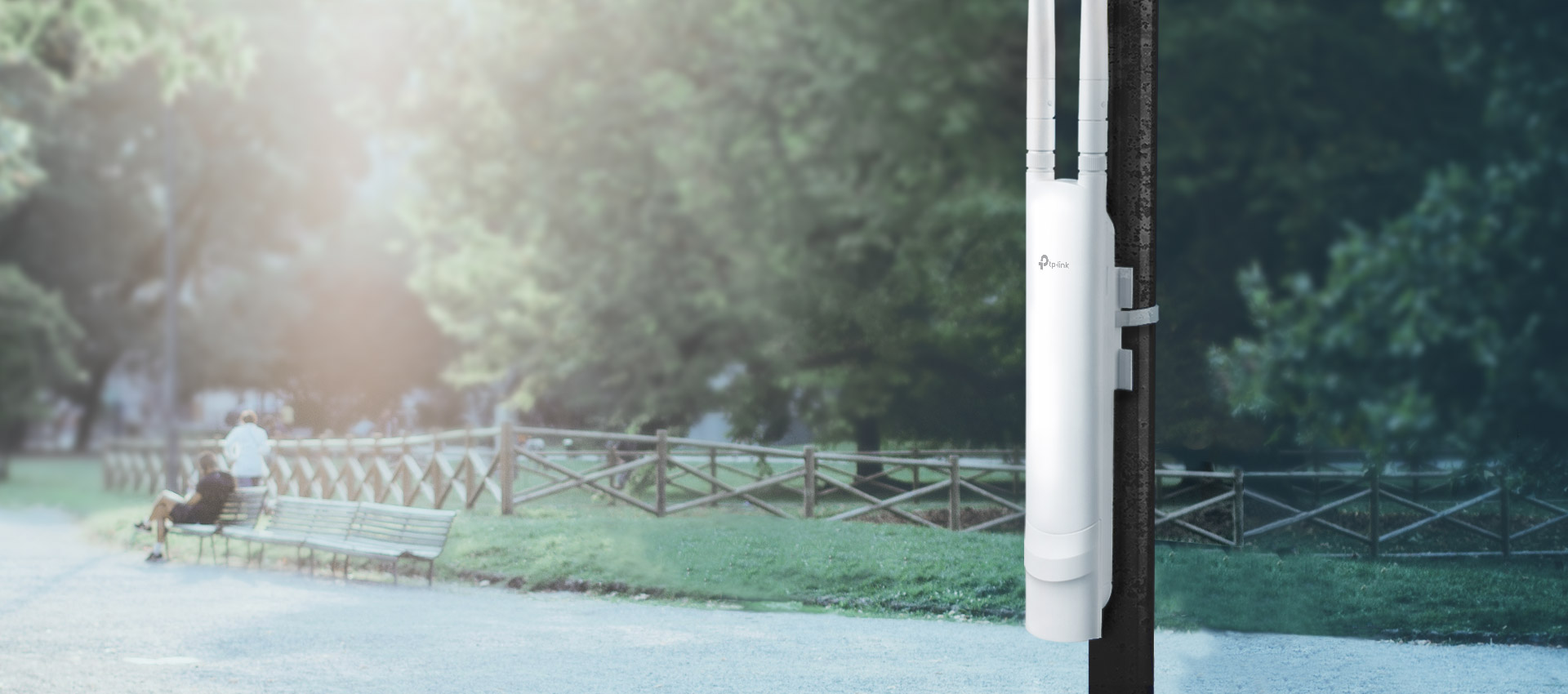

Ideal for Outdoor Environment: IP65 weatherproof enclosure for outdoor Wi-Fi applications.
Fast Wi-Fi: Up to 300Mbps Wi-Fi with 2×2 MIMO.†
Long-Range Coverage: Dedicated high-power amplifier and professional antennas.
Integrated into Omada SDN: Centralized Cloud Management and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.*
PoE Support: Supports Passive PoE (PoE adapter included) for convenient deployment.
Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.*
Key Specifications
Category Details
Model TP-Link Omada EAP110-Outdoor
Wireless Standard IEEE 802.11b/g/n (Wi-Fi 4)
Speed Up to 300 Mbps on 2.4 GHz
Antennas 2× Detachable Omni Antennas (3–5 dBi), weatherproof

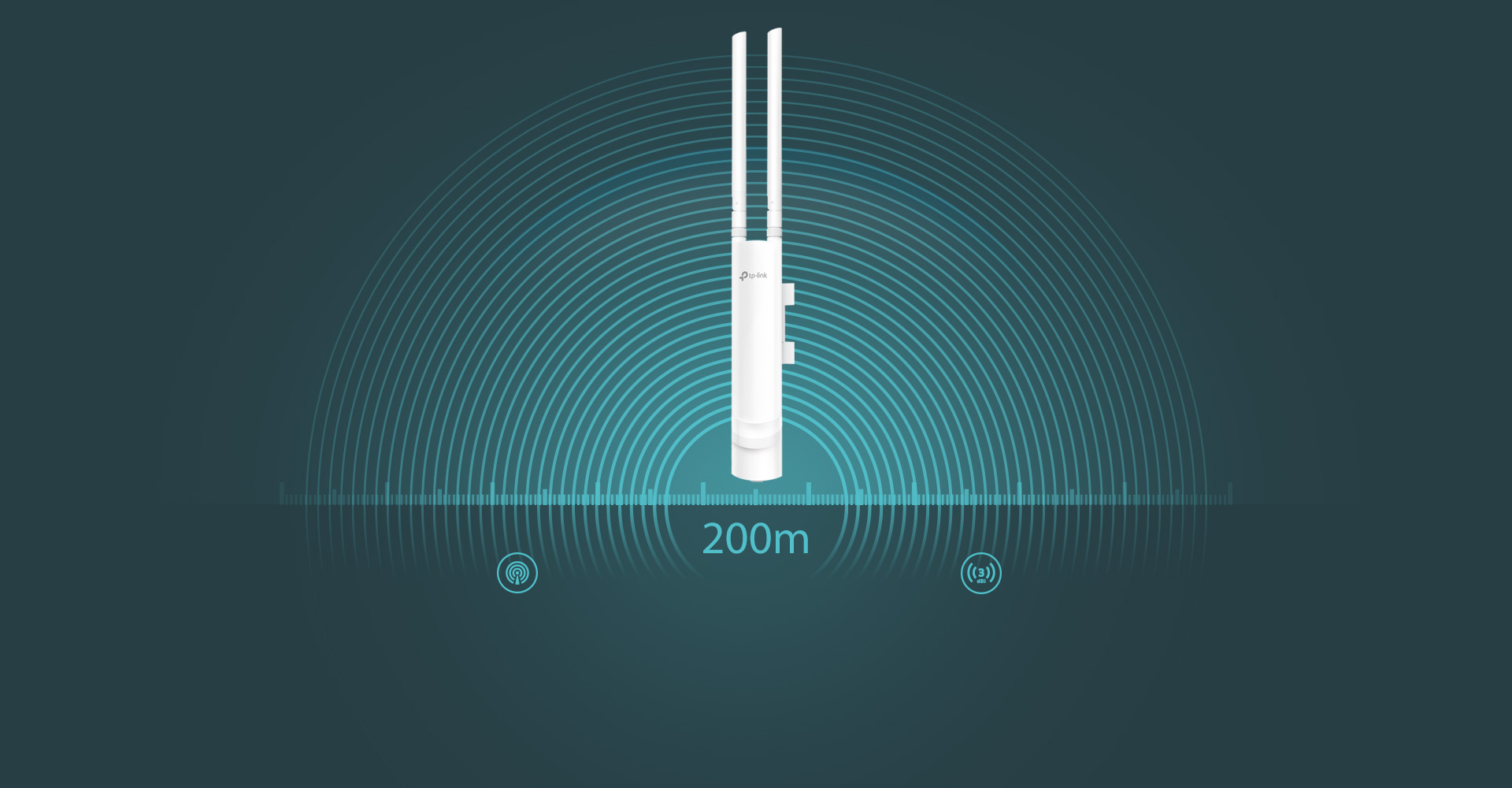

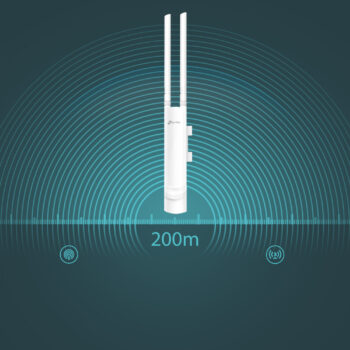

Range Up to 200 m outdoors (line of sight)
Enclosure IP65-rated weatherproof, with lightning & ESD protection
Port 1× 10/100 Mbps Ethernet (RJ45), supports 24 V passive PoE (adapter included)
Power Consumption ~3.1 W
Features Multi-SSID (up to 8), Captive Portal, VLAN, QoS, Load Balancing, Scheduling
Security WPA/WPA2-PSK, WPA2-Enterprise, 802.1X, MAC filtering, Rogue AP detection
Management Omada SDN (Cloud, Controller, or App), Web UI, SNMP

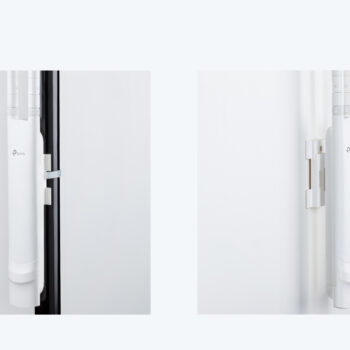

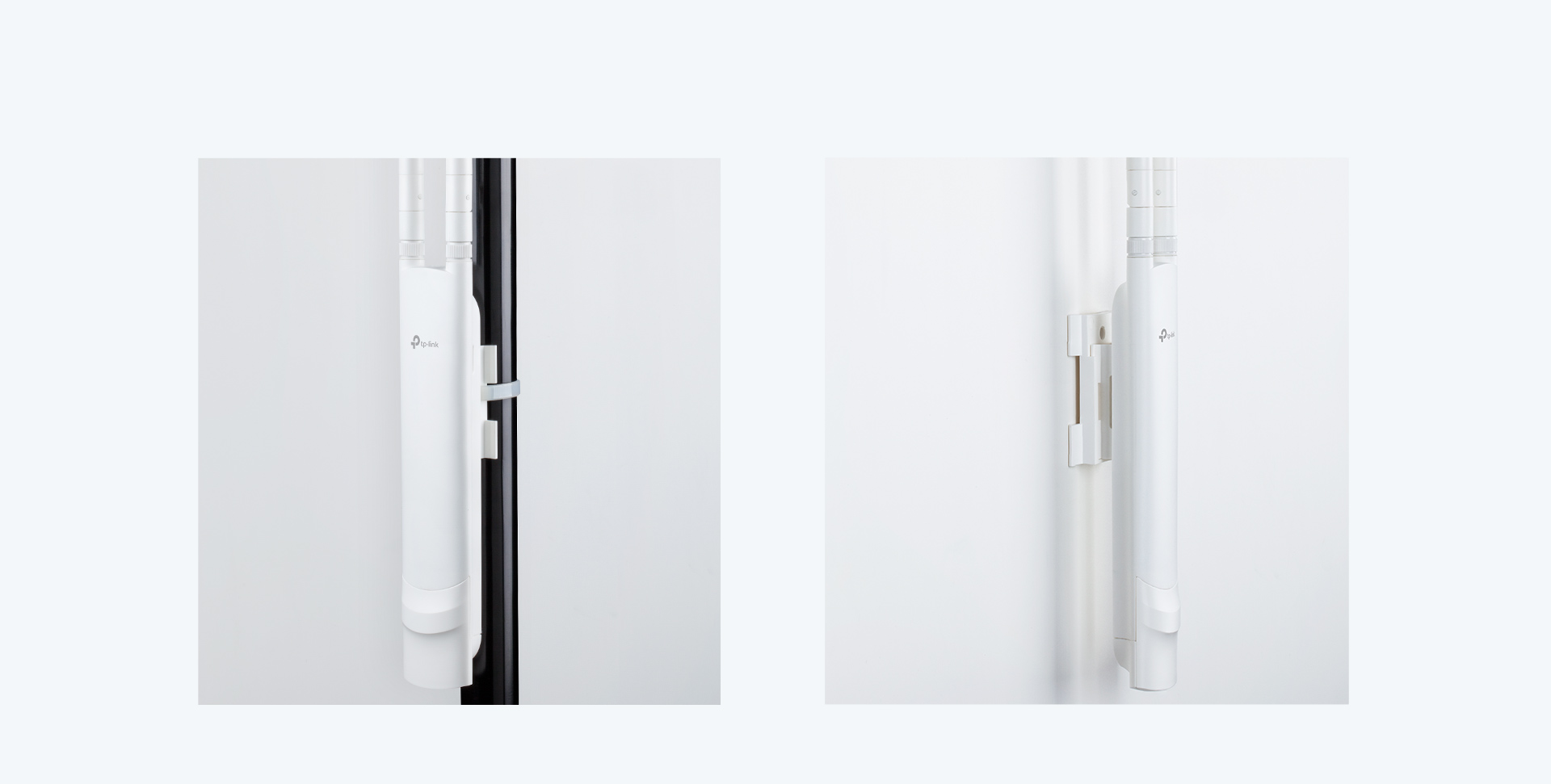

Mounting Pole or wall mount (kit included)
Size ~216 × 46 × 27 mm
Operating Conditions Temp: –30 °C to 65 °C; Humidity: 10–90% (non-condensing)
